Q144 / 160 · TS EAMCET 2023 (14 May Shift 1) · Physics

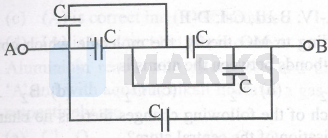

The effective capacitance between points $A$ and $B$ shown in the circuit is

Correct answer
A
$2 \mathrm{C}$
B
$\mathrm{C}$
C
$\frac{C}{2}$
D
$5 \mathrm{C}$

Solution

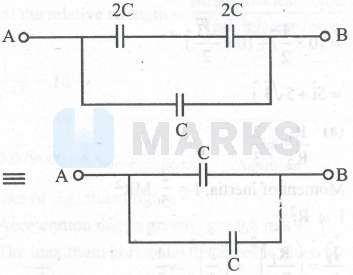

$C_{e q}=C+C=2 C$

Hence, the correct answer is option: 'A'.
