Q69 / 90 · JEE Main 2024 (04 Apr Shift 2) · Physics

Which of the diode circuit shows correct biasing used for the measurement of dynamic resistance of p-n junction diode :

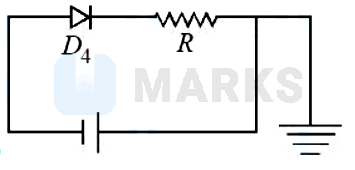

A

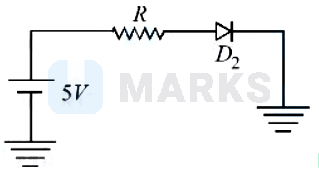

B
Correct answer

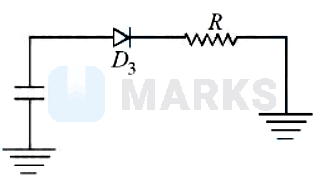

C
D

Solution

Diode should be in forward biased to calculate dynamic resistance.

Hence, the correct answer is option: 'C'.
