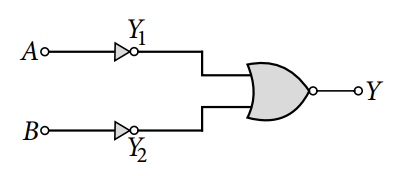

Which logic gate is represented by the following combination of logic gates in figure?

• A

  OR
• B

  NAND
• Correct answer
  C

  AND
• D

  NOR

Solution

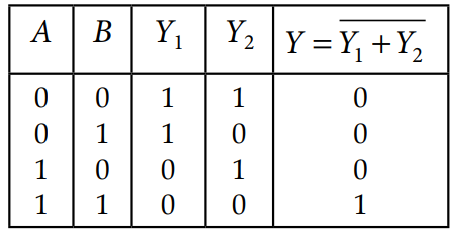

According to truth table, $Y=A \cdot B$, the given combination of logic gates represents AND gate.

Hence, the correct answer is option: 'C'.
