Q80 / 90 · KVPY 2019 (SB/SX) · Physics

Three large identical plates are kept parallel to each other. The outer two plates are maintained at temperatures T and 2T, respectively. The temperature of the middle plate in steady state will be close to

  • A
    1.1 T
  • B
    1.3 T
  • Correct answer
    C
    1.7 T
  • D
    1.9 T

Solution

Plates does not touch each other, so exchange of heat takes place in form of radiations.

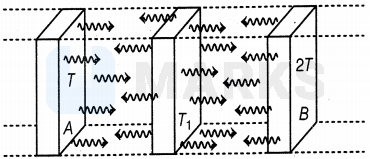

Figure

In steady state, heat gained by middle plate = heat lost by it.

⇒ Heat radiations from plate A + Heat radiations from plate B= Heat radiations emitted from both surfaces

⇒AεσT4+Aεσ2T4=2AεσT14

⇒T4+24T4=2T14⇒172T4=T14

⇒T14=17214·T or T1=1.7 T

Hence, the correct answer is option: 'C'.
