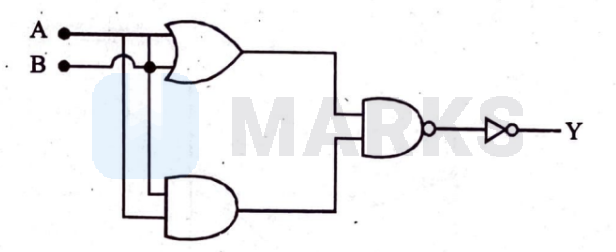

The logic operations performed by the given digital circuit is equivalent to:

• Correct answer
  A


  AND
• B


  NOR
• C


  OR
• D


  NAND

Solution

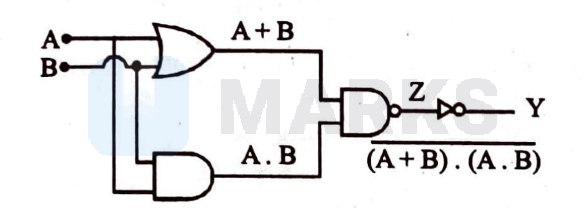

$\begin{aligned} & \mathrm{Y}=\overline{\mathrm{Z}}=(\mathrm{A}+\mathrm{B}) \cdot(\mathrm{A} \cdot \mathrm{B})=\mathrm{A} \cdot \mathrm{A} \cdot \mathrm{B}+\mathrm{AB} \cdot \mathrm{B} \\ & \mathrm{Y}=\mathrm{AB}+\mathrm{AB}=\mathrm{A} \cdot \mathrm{B} \\ & \therefore \text { It is an } \mathrm{AND} \text { Gate. }\end{aligned}$

Hence, the correct answer is option: 'A'.
