Q89 / 90 · JEE Main 2021 (27 Jul Shift 1) · Physics

The amplitude of upper and lower side bands of AM wave where a carrier signal with frequency 11.21 MHz, peak voltage 15 V is amplitude modulated by a 7.7 kHz sine wave of 5 V amplitude are a10 V and b10 V respectively. Then the value of ab is_____.

Correct answer: 1

Solution

In radio communications, a sideband is a band of frequencies higher than or lower than the carrier frequency, that are the result of the modulation process. The signal components above the carrier frequency constitute the upper sideband (USB), and those below the carrier frequency constitute the lower sideband (LSB).

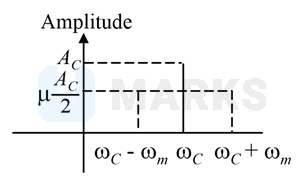

Figure

a10=b10=μAC2
⇒ab=1

Hence, the correct answer is 1.
