Q75 / 90 · JEE Main 2024 (09 Apr Shift 2) · Physics

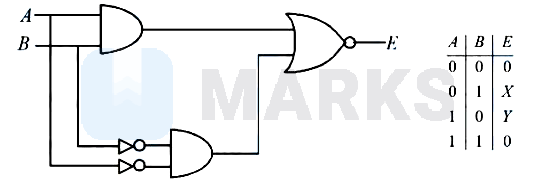

In the truth table of the above circuit the value of $\mathrm{X}$ and $\mathrm{Y}$ are :

A
0,0
Correct answer
B
1,1
C
1,0
D
0,1

Hence, the correct answer is option: 'B'.
