Q39 / 54 · JEE Advanced 2022 (Paper 1) · Physics

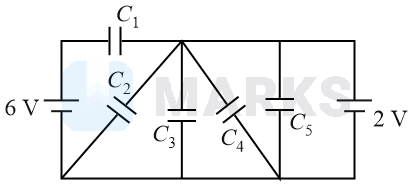

In the following circuit $C_{1} = 12 μF, C_{2} = C_{3} = 4 μF$ and $C_{4} = C_{5} = 2 μF$ . The charge stored in $C_{3}$ is $μC .$

Correct answer: 8

Solution

From circuit given,
Capacitors $C_{2}, C_{3}, C_{4}$ and $C_{5}$ are in parallel connection with constant potential difference as $2 V$ .
Now, charge stored in $C_{3}$ is $Q_{3} = 2 \times 4 μC$ $= 8 μC$ .

Hence, the correct answer is 8.
