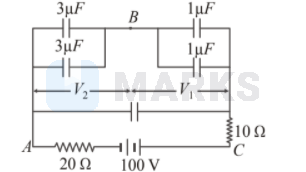

In the figure below, what is the potential difference between the point $A$ and $B$ and between $B$ and $C$ respectively in steady state

• A

  $\quad V_{A B}=V_{B C}=100 \mathrm{~V}$
• B

  $\quad V_{A B}=75 V, V_{B C}=25 V$
• Correct answer
  C

  $\quad V_{A B}=25 V, V_{B C}=75 V$
• D

  $\quad V_{A B}=V_{B C}=50 \mathrm{~V}$

Solution

The equivalent circuit is shown in figure. $$ \begin{array}{l} V_{1}+V_{2}=100 \\ \text { and } 2 V_{1}=6 V_{2} \end{array} $$
On solving above equations, we get $V_{1}=75 V, V_{2}=25 V$

Hence, the correct answer is option: 'C'.
