Q79 / 90 · JEE Main 2022 (27 Jun Shift 1) · Physics

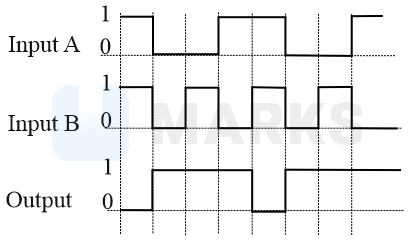

Identify the correct Logic Gate for the following output $(Y)$ of two inputs $A$ and $B$ .

A
Correct answer
B
C
D

Solution

For the given input and output, truth table is given below.

Input A	Input B	Output
1	1	0
0	1	1
1	0	1
0	0	1

Clearly, it is a NAND gate. Therefore, the answer is B.

Hence, the correct answer is option: 'B'.
