Q43 / 56 · NEST (NISER) 2014 · Physics

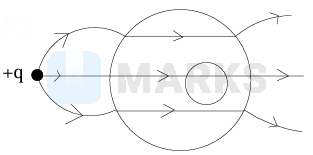

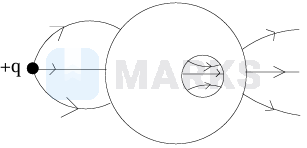

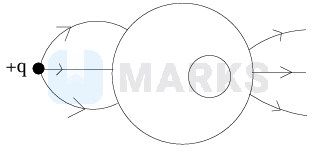

A positive point charge $q$ is placed near a three dimensional isolated, neutral solid conductor with a cavity as shown. The possible electric lines of force are best depicted in:

Correct answer
A
B
C
D

Hence, the correct answer is option: 'A'.
