Q42 / 53 · NEST (NISER) 2013 · Physics

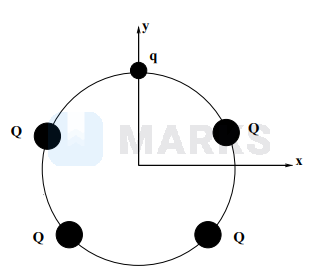

A circular loop of radius $a$, centered at origin has five positive charges equally spaced on it. All charges have a magnitude Q , except the one at $(0, a)$ which has a magnitude $q$, as shown in the figure. The electric field at the origin will be
Figure

  • A
    $\frac{1}{4 \pi \epsilon_0}\left[\frac{4 Q+q}{a^2}\right] \hat{j}$
  • Correct answer
    B
    $\frac{1}{4 \pi \epsilon_0}\left[\frac{Q-q}{a^2}\right] \hat{j}$
  • C
    $\frac{1}{4 \pi \epsilon_0}\left[\frac{4 Q}{a^2} \sin \left(\frac{2 \pi}{5}\right)+\frac{q}{a^2}\right] \hat{j}$
  • D
    $\frac{1}{4 \pi \epsilon_0}\left[\frac{4 Q}{a^2} \cos \left(\frac{2 \pi}{5}\right)+\frac{q}{a^2}\right] \hat{j}$

Hence, the correct answer is option: 'B'.
