Q77 / 90 · JEE Main 2022 (25 Jun Shift 2) · Physics

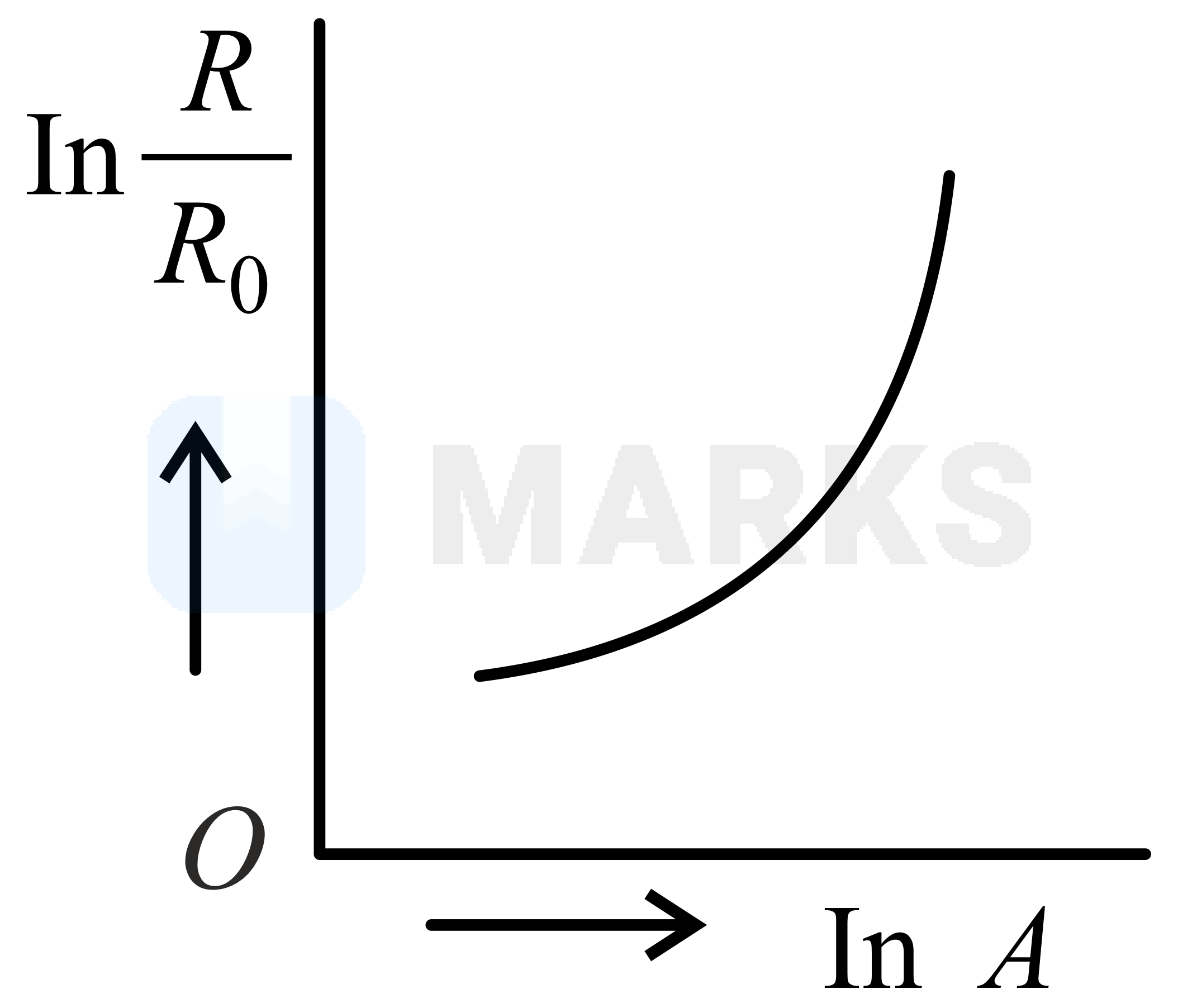

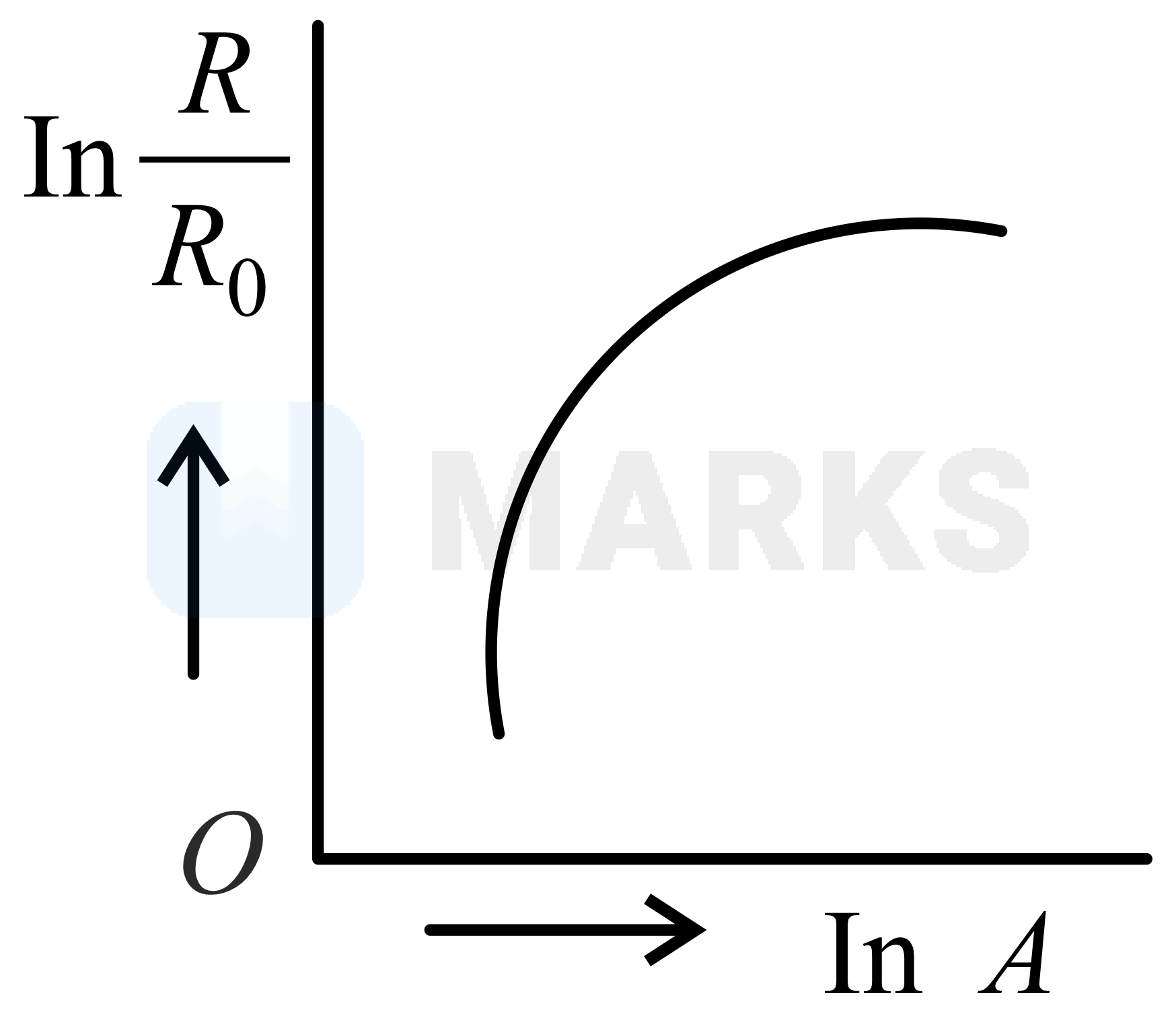

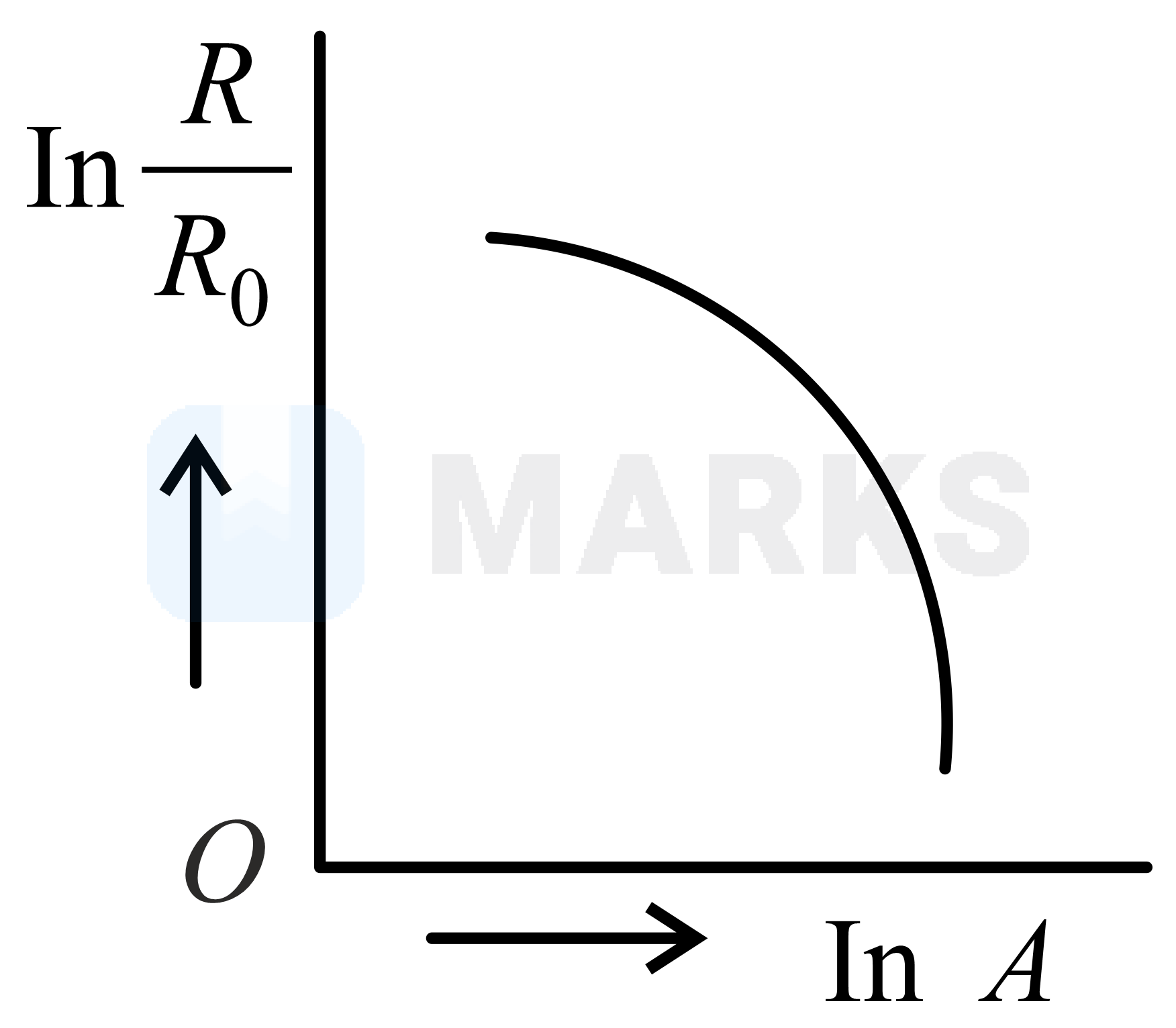

Which of the following figure represents the variation of $\ln (\frac{R}{R_{0}})$ with $\ln A$ (if $R =$ radius of a nucleus and $A =$ its mass number)

A
Correct answer
B
C
D

Solution

We know the relation between radius and atomic mass number is $R = R_{0} A^{\frac{1}{3}}$ $\Rightarrow \ln R = \ln R_{0} + \frac{1}{3} \ln A$

$\Rightarrow \ln (\frac{R}{R_{0}}) = \frac{1}{3} \ln A$

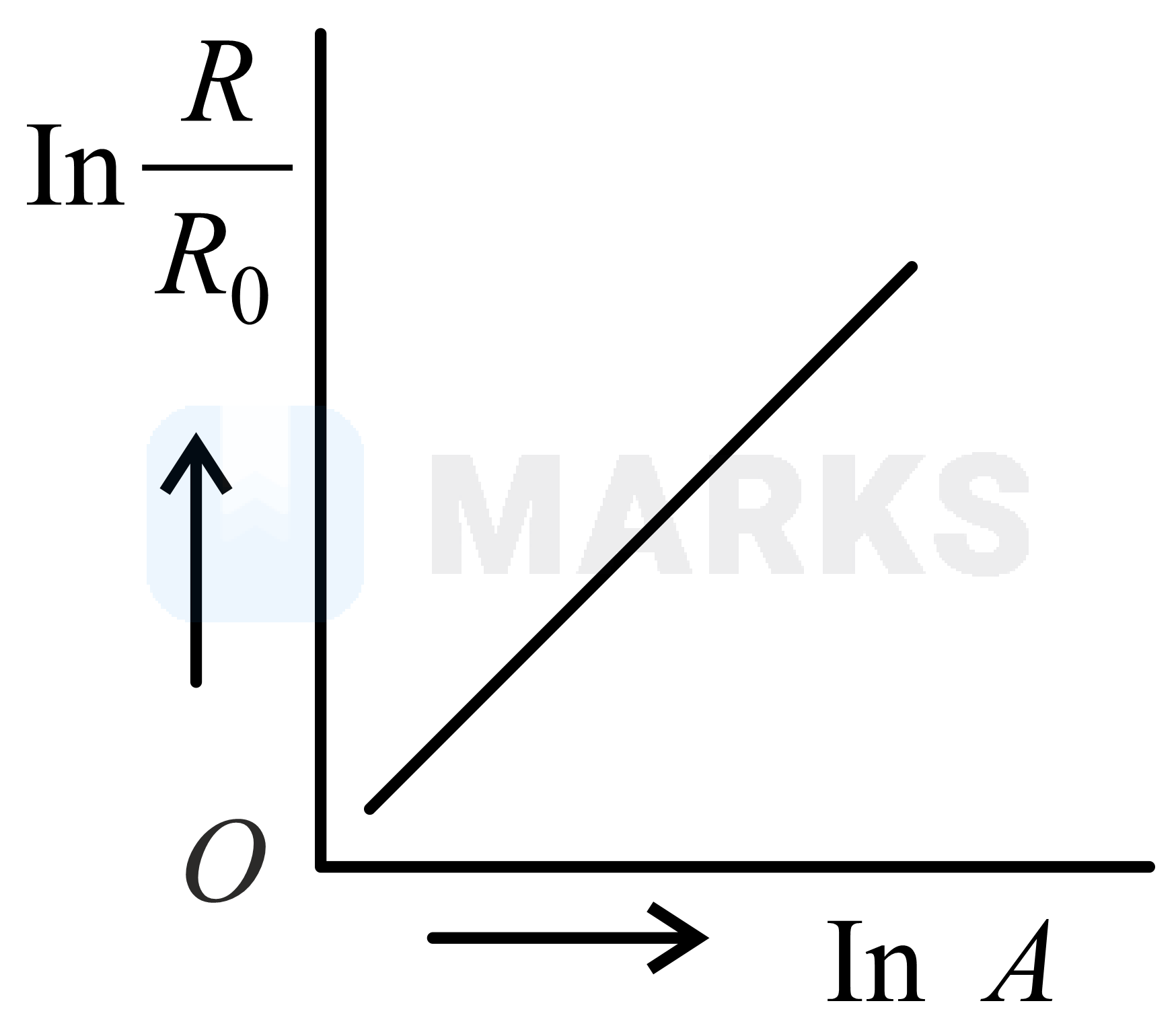

It is similar to $y = m x$ which is equation of line passing through origin.

Hence, the correct answer is option: 'B'.
