Q58 / 75 · JEE Main 2025 (22 Jan Shift 1) · Physics

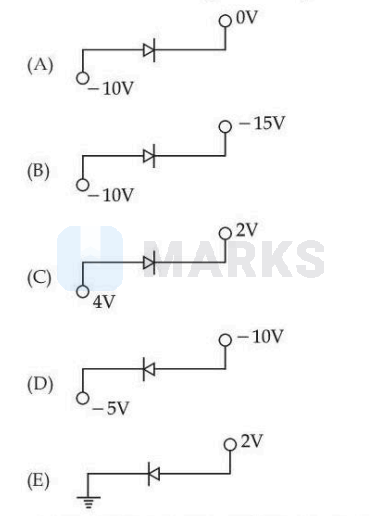

Which of the following circuits represents a forward biased diode?
Choose the correct answer from the options given below :

A
(A) and (D) only
B
(B), (D) and (E) only
C
(C) and (E) only
Correct answer
D
(B), (C) and (E) only

Solution

For forward bias potential of $p$ side should be higher than $n$ side.

Hence, the correct answer is option: 'D'.
