Q55 / 60 · JEE Advanced 2013 (Paper 1) · Physics

Two non-conducting solid spheres of radii R and 2R, having uniform volume charge densities ρ 1 and ρ 2 , respectively, touch each other. The net electric field at a distance 2R from the centre of the smaller sphere, along the line joining the centres of the spheres, is zero. The ratio ρ 1 ρ 2 can be

  • A
    - 4
  • Correct answer
    B
    - 3 2 2 5
  • C
    3 2 2 5
  • Correct answer
    D
    4

Solution

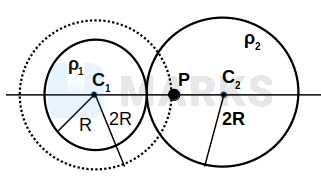

FigureField due to small sphere
= K ρ 1 4 3 π R 3 2 R 2
Field due to bigger sphere
= K ρ 2 4 3 π 2 R 3 × R 2 R 3
The net electric field at point P will be

E→net=0

Equating above two, we get ρ 1 ρ 2 = 4
[Charges cannot be of an opposite sign otherwise field will not zero]

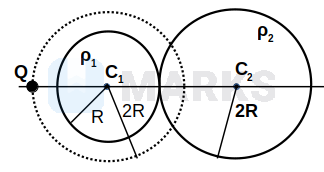

Figure

Similarly, the net electric field at point Q becomes zero. Then ρ 1 ρ 2 = - 3 2 2 5 here both spheres should have opposite polarity.

Hence, the correct answer is options: 'B', 'D'.
