Q157 / 160 · TS EAMCET 2019 (03 May Shift 2) · Physics

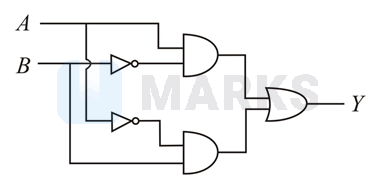

The truth table for the given logic circuit is

Figure

  • Correct answer
    A
    Figure
  • B
    Figure
  • C
    Figure
  • D
    Figure

Solution

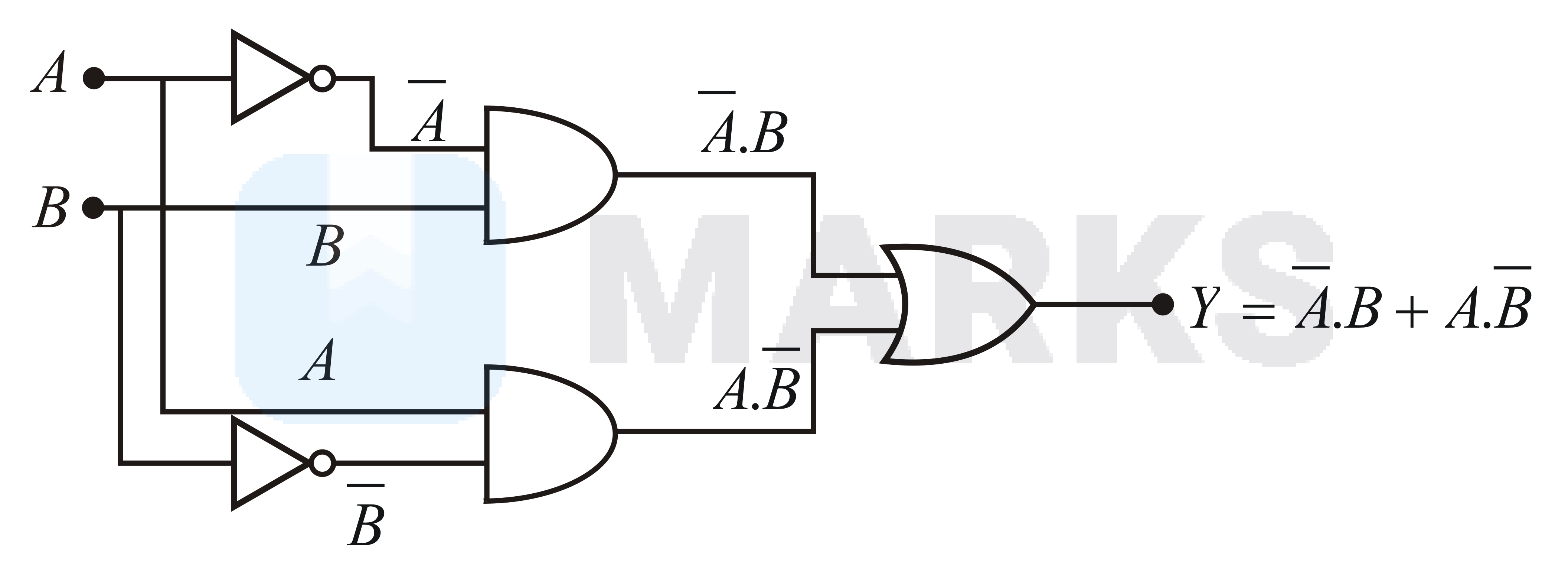

$Y=\bar{A} \cdot B+A \cdot \bar{B}$

Figure

The truth table for the given logic circuit is


$A$ $B$ $\bar{A}$ $\bar{B}$ $\bar{A}.B$ $A.\bar{B}$ $Y=\bar{A} \cdot B + A \cdot\bar{B}$
$0$ $0$ $1$ $1$ $0$ $0$ $0$
$0$ $1$ $1$ $0$ $1$ $0$ $1$
$1$ $0$ $0$ $1$ $0$ $1$ $1$
$1$ $1$ $0$ $0$ $0$ $0$ $0$



Hence, the correct answer is option: 'A'.
