Q106 / 200 · NEET 2022 (Phase 2) · Physics

The restoring force of a spring with a block attached to the free end of the spring is represented by:

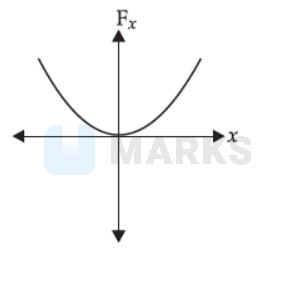

A

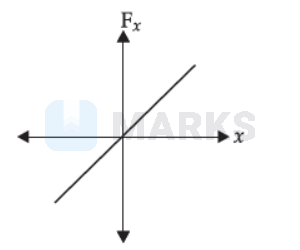

B

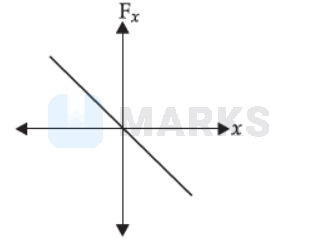

C
Correct answer

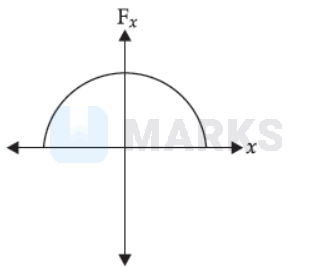

D

Solution

Restoring force of spring, $\mathrm{F} \propto-x$ (where, $x$ is the displacement) Only graph (4) is representing the above equation.

Hence, the correct answer is option: 'D'.
