Q72 / 75 · JEE Main 2025 (22 Jan Shift 2) · Physics

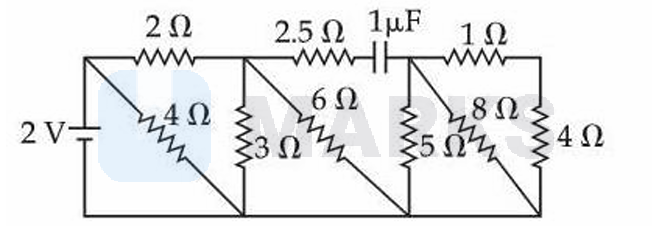

The net current flowing in the given circuit is_______ A.

Correct answer: 1

Solution

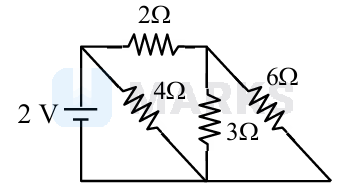

$\begin{aligned} & \mathrm{R}_{\mathrm{eq}}=2 \Omega \\ & \mathrm{I}=\frac{2}{2}=1 \mathrm{~A}\end{aligned}$

Hence, the correct answer is 1.
