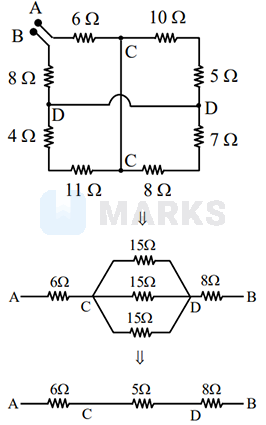

The equivalent resistance between $\mathrm{A}$ and $\mathrm{B}$ is :

• A

  $18 \Omega$
• Correct answer
  B

  $19 \Omega$
• C

  $25 \Omega$
• D

  $27 \Omega$

Solution

$\Rightarrow \mathrm{R}_{\mathrm{eq}}=6 \Omega+5 \Omega+8 \Omega=19 \Omega$

Hence, the correct answer is option: 'B'.
