Q48 / 88 · NTA Abhyas (JEE Main) 2020 · Physics · Semiconductors

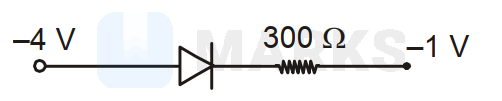

The current in the branch of a circuit shown below is

Correct answer
A
$0 A$
B
$10^{- 2} A$
C
$1 A$
D
$0.10 A$

Solution

Since the diode is in reverse bias, there is no current in the branch.

Hence, the correct answer is option: 'A'.
