Q120 / 200 · NEET 2022 (Phase 2) · Physics

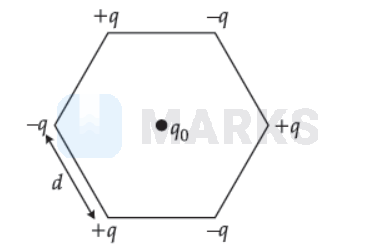

Six charges $+q,-q,+q,-q,+q$ and $-q$ are fixed at the corners of a hexagon of side $d$ as shown in the figure. The work done in bringing a charge $q_0$ to the centre of the hexagon from infinity is $\left(\varepsilon_0-\right.$ permittivity of free space): Figure

  • Correct answer
    A
    Zero
  • B
    $\frac{-q^2}{4 \pi \varepsilon_0 d}$
  • C
    $\frac{-q^2}{4 \pi \varepsilon_0 d}\left(3-\frac{1}{\sqrt{2}}\right)$
  • D
    $\frac{-q^2}{4 \pi \varepsilon_0 d}\left(6-\frac{1}{\sqrt{2}}\right)$

Solution

Work done $=$ Change in potential energy $\begin{aligned} & \mathrm{W}=\mathrm{U}_f-\mathrm{U}_i \\ & \mathrm{~W}=0 \end{aligned}$ Hence, $W=0$

Hence, the correct answer is option: 'A'.
