Q77 / 90 · JEE Main 2019 (12 Jan Shift 2) · Physics

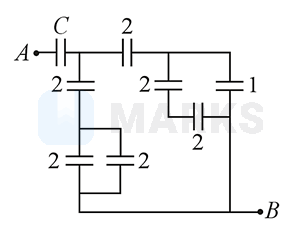

In the circuit shown, find $C$ if the effective capacitance of the whole circuit is to be $0.5 μ F .$ All values in the circuit are in $μ F .$

A
$\frac{7}{10} μ F$
B
$4 μ F$
Correct answer
C
$\frac{7}{11} μ F$
D
$\frac{6}{5} μ F$

Solution

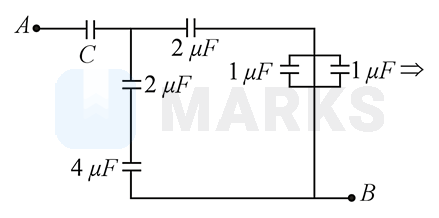

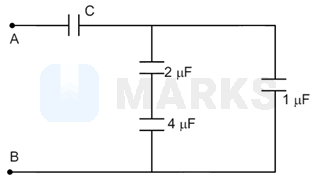

Let us take the equivalent circuit one by one.

$∴ C_{e q} = \frac{C \times \frac{7}{3}}{C + \frac{7}{3}}$ = 0.5 $\Rightarrow \frac{7}{3} C = \frac{C}{2} + \frac{7}{6}$

$\Rightarrow \frac{11}{6} C = \frac{7}{6} \Rightarrow C = \frac{7}{11} μ F$

Hence, the correct answer is option: 'C'.
