Q159 / 160 · AP EAMCET 2025 (23 MAY SHIFT 2) · Physics

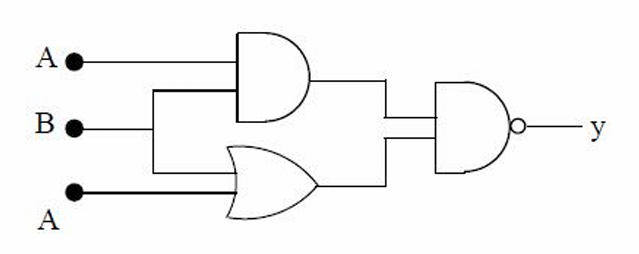

If three logic gates are connected as shown in the figure, then the correct truth table of the circuit is

A
A B Y
0 0 1
0 1 0
1 0 0
1 1 1
Correct answer
B
A B Y
0 0 1
0 1 1
1 0 1
1 1 0
C
A B Y
0 0 0
0 1 0
1 0 0
1 1 1
D
A B Y
0 0 0
0 1 1
1 0 1
1 1 0

Hence, the correct answer is option: 'B'.
