Q151 / 160 · AP EAMCET 2025 (27 MAY SHIFT 1) · Physics

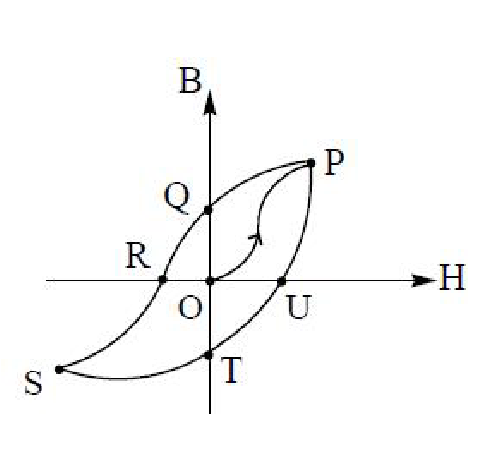

If the given figure shows the relation between magnetic field (B-along $y$-axis) and magnetic intensity ( H -along x -axis) of a ferromagnetic material, then the point that represents coercivity of the material is

A
$P$
B
Q
Correct answer
C
R
D
S

Hence, the correct answer is option: 'C'.
