Q117 / 155 · WBJEE 2021 · Physics

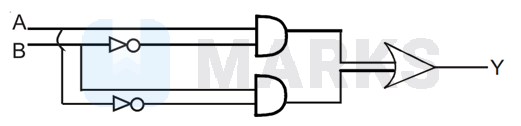

For the given logic circuit, the output $Y$ for inputs $(A=0, B=1)$ and $(A=0, B=0)$ respectively are
For the given logic circuit, the output $Y$ for inputs $(A=0, B=1)$ and $(A=0, B=0)$ respectively are
- A0,0
- B0,1
- Correct answerC1,0
- D1,1
Solution
$A(0), B(1)$
$(\mathrm{A} \cdot \overline{\mathrm{B}}+\overline{\mathrm{A}} \cdot \mathrm{B})=(0.0+1.1)=1$
$\mathrm{A} \cdot \overline{\mathrm{B}}+\overline{\mathrm{A}} \cdot \mathrm{B}=(0.1+1.0)=0$
$(1,0)$
Hence, the correct answer is option: 'C'.
