Q63 / 75 · JEE Main 2025 (29 Jan Shift 1) · Physics

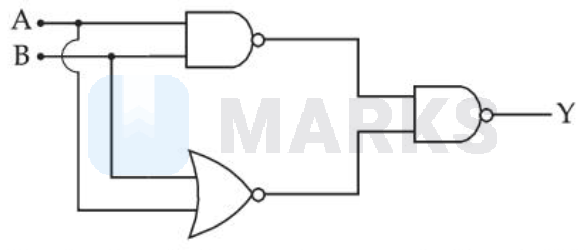

For the circuit shown above, equivalent GATE is :

Correct answer
A
OR gate
B
NAND gate
C
NOT gate
D
AND gate

Solution

$\begin{array}{l|l|l} A & B & Y \\ \hline 0 & 0 & 0 \\ 0 & 1 & 1 \\ 1 & 0 & 1 \\ 1 & 1 & 1 \end{array}$ $\Rightarrow$ OR Gate

Hence, the correct answer is option: 'A'.
