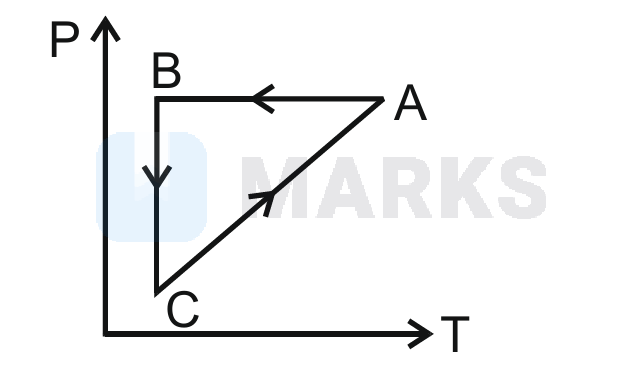

For an ideal gas, a cyclic process ABCA as shown in $\mathrm{P}-\mathrm{T}$ diagram, when presented in $\mathrm{P}-\mathrm{V}$ plot, it would be

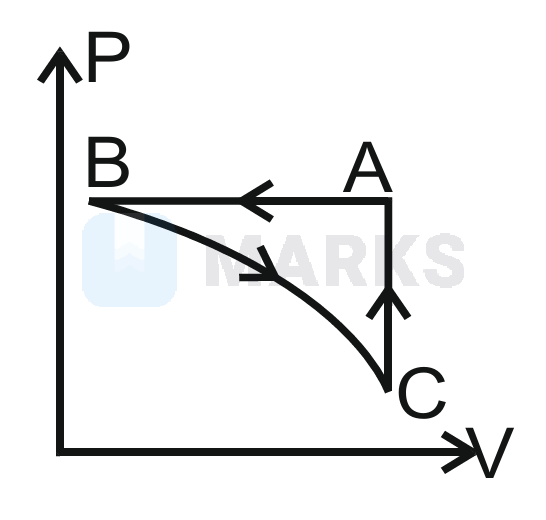

• A

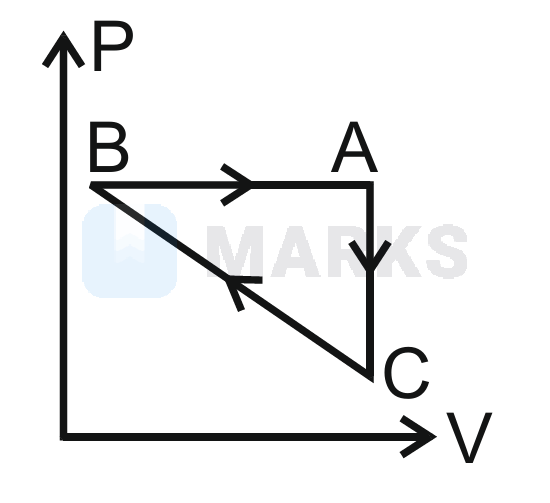

• B



• Correct answer

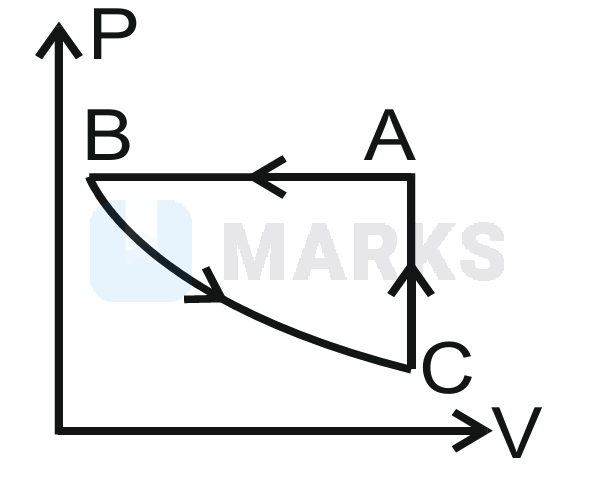

  C

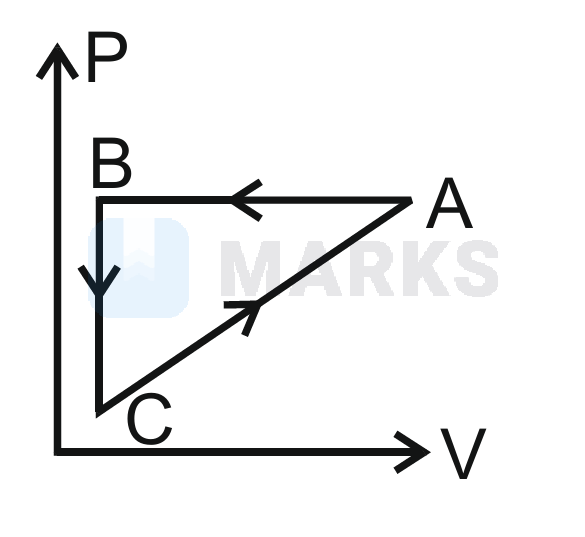

• D




Solution

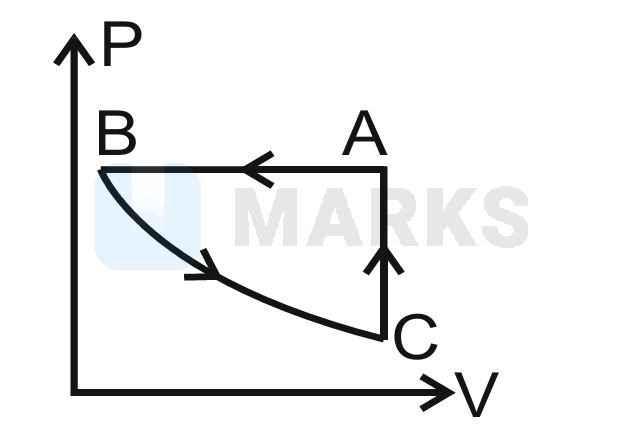

$\mathrm{AB} \rightarrow$ Isobaric compression $B C \rightarrow$ Isothermal expansion CA $\rightarrow$ Isochoric process $\therefore \quad$ Correct $\mathrm{P}-\mathrm{V}$ diagram is

Hence, the correct answer is option: 'C'.
