Q70 / 90 · JEE Main 2019 (12 Apr Shift 2) · Physics

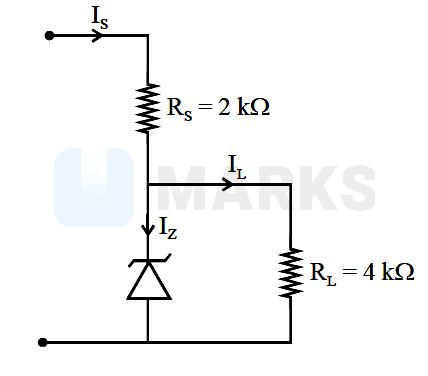

Figure shows a $D C$ voltage regulator circuit, with a Zener diode of breakdown voltage $= 6 V$ . If the unregulated input voltage varies between $10 V$ to $16 V,$ then what is the maximum Zener current?

A
$1.5 m A$
Correct answer
B
$3.5 mA$
C
$7.5 m A$
D
$2.5 m A$

Solution

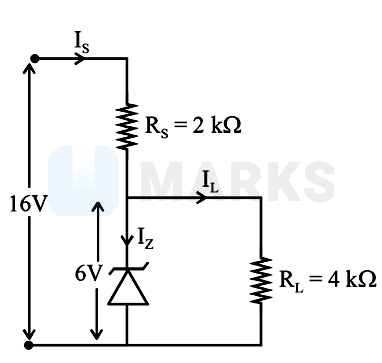

Current through $2 K Ω$ is
$i = \frac{10}{2000} = 5 m A$
Current through 4 $K Ω$
$i_{L} = i - i_{z} = \frac{6}{4000} = 1.5 m A$
$\Rightarrow i_{z} = i - 1.5$

$∴ i_{z} = 5 - 1 .5 = 3 .5 mA$

Hence, the correct answer is option: 'B'.
