Q39 / 237 · NTA Abhyas (NEET) 2020 · Physics · Semiconductors

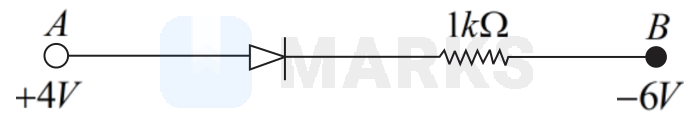

Consider the junction diode as ideal. The value of current flowing through AB is

Figure

  • A
    0 A
  • Correct answer
    B
    10-2 A
  • C
    10-1 A
  • D
    10-3 A

Solution

I= V A − V B R

= 4−( −6 ) 1000

= 10 1000 = 10 −2  A

Hence, the correct answer is option: 'B'.
