Q68 / 75 · JEE Main 2025 (3 Apr Shift 1) · Physics

Choose the correct logic circuit for the given truth table having inputs A and B.
$\begin{array}{|c|c|c|} \hline \text{Inputs} & & \text{Output} \\ \hline A & B & Y \\ \hline 0 & 0 & 0 \\ \hline 0 & 1 & 0 \\ \hline 1 & 0 & 1 \\ \hline 1 & 1 & 1 \\ \hline \end{array}$

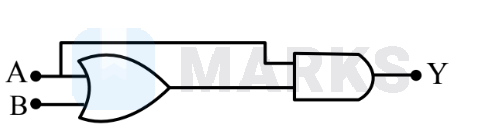

A
Correct answer

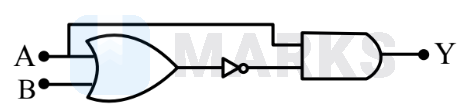

B

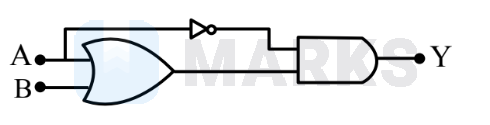

C

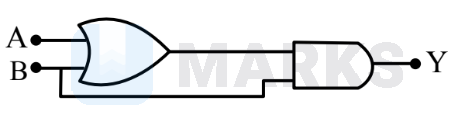

D

Solution

Only option (2) matches with the truth table

Hence, the correct answer is option: 'B'.
