Q72 / 90 · JEE Main 2022 (28 Jul Shift 2) · Physics

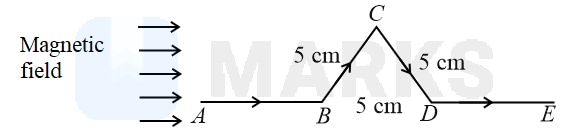

A triangular shaped wire carrying $10 A$ current is placed in a uniform magnetic field of $0.5 T$ , as shown in figure. The magnetic force on segment $C D$ is (Given $B C = C D = B D = 5 cm$ ).

A
$0.126 N$
B
$0.312 N$
Correct answer
C
$0.216 N$
D
$0.245 N$

Solution

Force due to magnetic field on a current carrying conductor is given by, $\vec{F} = i \vec{l} \times \vec{B}$ .
The angle between the magnetic field and the direction of the current in the wire $C D$ is $60 °$ . Therefore,
$F = i l B \sin 60 ° \Rightarrow F = 10 \times 0.05 \times 0.5 \times \frac{\sqrt{3}}{2} \Rightarrow F = 0.216 N$

Hence, the correct answer is option: 'C'.
