Q89 / 90 · JEE Main 2016 (09 Apr Online) · Physics

A series LR circuit is connected to a voltage source with Vt=V0sinωt . After a very large time, current It behaves as t0≫LR:

  • A

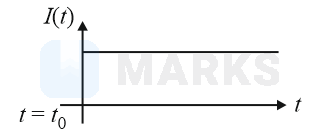

    Figure
  • B

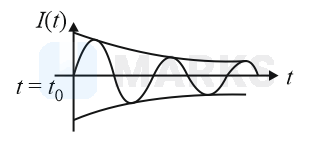

    Figure
  • C

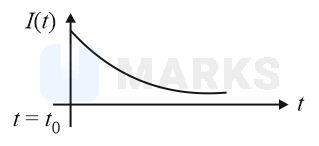

    Figure
  • Correct answer
    D

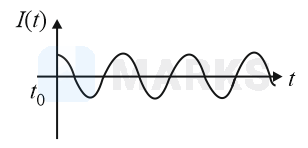

    Figure

Solution

When sinusoidal voltage is applied across LR circuit, current is also sinusoidal but it lags by some phase.

Current will be in the form of
I=I0sinωt-ϕ
Graph will be sinusoidal.

Here I0 is the maximum current and ϕ is phase difference between V & I

Hence, the correct answer is option: 'D'.
